Kiran George Gaurdian - Gameplay Programmer Portfolio

Custom Entity-Component System
Rendering System using SDL3's rendering API
Particle System
Parent-Child Transformations

WHAT I WORKED ON

Language:

C++

Framework:

SDL3

Build System:

CMake

Entity-Component System - WIP

https://skypjack.github.io/2019-02-14-ecs-baf-part-1/

I was really interested in Data-Oriented Programming and Entity-Component Systems, so I wanted to give creating one a shot.
I used many references online such as EnTT and flecs to understand how the "API" surrounding an ECS should work.
For building sparse sets and the ECS itself from scratch, I mostly referred to skypjack's ECS back and forth series:

OVERVIEW

My Sparse Set class has a sparse entity array, dense entity array, and dense component array.
If N was the max number of entities my scene was going to allow for, my sparse entity array would start out with a size of N, and I would reserve N space for my dense arrays.
I have functions for adding and removing components, as well as getters for each of my arrays.
My ECS Manager contains querying functions for groups of components, examples of which will be shown in the systems section.
The Sparse Sets can definitely be improved, as they function as a simple naive lookup in the sparse arrays. I have researched techniques such as pagination that could be used to improve sparse lookups, and I plan to implement that in the future.

SPARSE SETS

(C++) Sparse Set

#pragma once
#include <cstdint>
#include <vector>
#include "ISparseSet.h"
#include "ECSData.h"

namespace Core::ECS
{
	template<typename ComponentTypeUsedBySparseSet>
	class SparseSet : public ISparseSet
	{
	public:
		SparseSet(const std::uint32_t someMaxEntityCount) : m_maxEntityCount(someMaxEntityCount)
		{
			m_sparseEntityArray.resize(m_maxEntityCount, INVALID_ENTITY_ID);
			m_sparseEntityArray.reserve(m_maxEntityCount/2);
			m_denseEntityArray.reserve(m_maxEntityCount);
			m_denseComponentArray.reserve(m_maxEntityCount);
		}

		~SparseSet() override
		{
			m_sparseEntityArray.clear();
			m_denseEntityArray.clear();
			m_denseComponentArray.clear();

			m_sparseEntityArray.shrink_to_fit();
			m_denseEntityArray.shrink_to_fit();
			m_denseComponentArray.shrink_to_fit();
		}

		void AddComponentToEntity(const std::uint32_t entityID, ComponentTypeUsedBySparseSet&& component)
		{
			if (m_sparseEntityArray.size()-1 < entityID)
			{
				//Resize sparse array to accomodate new elements, and
				//reserve space for future allocations
				m_sparseEntityArray.resize(entityID);
				m_sparseEntityArray.reserve(m_maxEntityCount / 2);
				m_denseEntityArray.reserve(m_maxEntityCount / 2);
				m_denseComponentArray.reserve(m_maxEntityCount / 2);
			}

			if (m_sparseEntityArray[entityID] != INVALID_ENTITY_ID)
			{
				return;
			}

			m_denseEntityArray.push_back(entityID);
			m_denseComponentArray.push_back(std::forward<ComponentTypeUsedBySparseSet>(component));
			m_sparseEntityArray[entityID] = static_cast<std::uint32_t>(m_denseEntityArray.size()-1);
		}

		void RemoveComponentFromEntity(const std::uint32_t entityID) override
		{
			if (m_sparseEntityArray[entityID] == INVALID_ENTITY_ID)
			{
				return;
			}
			const auto swappableLastEntityIndex = m_denseEntityArray.back();

			//Swap component to be removed with the last element in dense array
			std::swap(m_denseEntityArray[m_sparseEntityArray[entityID]], m_denseEntityArray.back());
			std::swap(m_denseComponentArray[m_sparseEntityArray[entityID]], m_denseComponentArray.back());
			std::swap(m_sparseEntityArray[swappableLastEntityIndex], m_sparseEntityArray[entityID]);

			m_denseEntityArray.pop_back();
			m_denseComponentArray.pop_back();
			m_sparseEntityArray[entityID] = INVALID_ENTITY_ID;
		}

		std::vector<std::uint32_t>& GetSparseEntityArray() override
		{
			return m_sparseEntityArray;
		}

		std::vector<std::uint32_t>& GetDenseEntityArray() override
		{
			return m_denseEntityArray;
		}

		std::vector<ComponentTypeUsedBySparseSet>& GetDenseComponentArray()
		{
			return m_denseComponentArray;
		}

	private:
		std::uint32_t m_maxEntityCount;

		std::vector<std::uint32_t> m_sparseEntityArray;
		std::vector<std::uint32_t> m_denseEntityArray = std::vector<uint32_t>(1, 0);
		std::vector<ComponentTypeUsedBySparseSet> m_denseComponentArray =
			std::vector<ComponentTypeUsedBySparseSet>(1, ComponentTypeUsedBySparseSet());
	};
}

My Transform Components contain local and world positions, rotations and scales, as well as Up and Right vectors. They also hold a parent entity ID which shows whether it is parented to another transform or not.
Currently, it also has an "Owner" GameObject pointer, which I use only for debugging purposes.
For the system code, I use a lambda function which is passed to a ForEach function in my ECS Manager, which fetches the corresponding components needed by the system.

RENDERING SYSTEM

(C++) Rendering System

void Core::ECS::Systems::RenderingSystem::UpdateSystem(const float deltaTime)
{
	ECSManager::GetInstance().ForEach<Assets::Components::Transform, Assets::Components::Renderer2D>(
		[&](const Assets::Components::Transform &transform, Assets::Components::Renderer2D &renderer2D)
		{
			SDL_SetRenderDrawColor(Application::GetCoreInstance().GetMainRenderer(),
			                       renderer2D.Color.r, renderer2D.Color.g, renderer2D.Color.b, renderer2D.Color.a);

			glm::vec2 screenCoordinates = ConvertToScreenCoordinates(transform.WorldPosition);
			renderer2D.RenderRectangle.x = screenCoordinates.x - transform.WorldScale.x * 0.5f;
			renderer2D.RenderRectangle.y = screenCoordinates.y - transform.WorldScale.y * 0.5f;
			renderer2D.RenderRectangle.w = transform.WorldScale.x;
			renderer2D.RenderRectangle.h = transform.WorldScale.y;

			SDL_RenderTextureRotated(Application::GetCoreInstance().GetMainRenderer(),
			                         renderer2D.RenderTexture, nullptr, &renderer2D.RenderRectangle,
			                         -glm::degrees(transform.WorldRotation), nullptr, SDL_FLIP_NONE);
		});
}

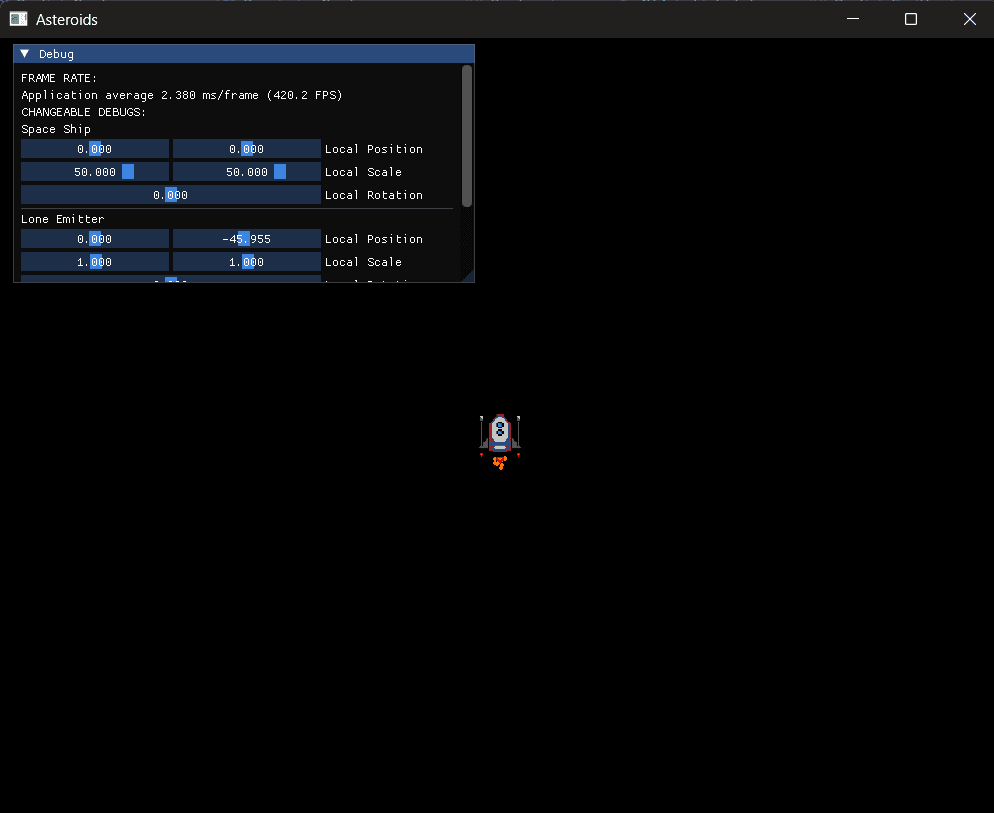

Since I am making Asteroids, I thought that while I am making an ECS, why not make a particle system as well since we are controlling a rocket with thrusters.
So I put together a simple and functional particle system with adjustable particle amount, lifetime, speed and randomness.

PARTICLE SYSTEM

(C++) Particle System

void Core::ECS::Systems::ParticleSystem::BeginSystem()
{
	m_maxCartesianLimits = GameScene::GetMaxCartesianLimits();
	m_minCartesianLimits = GameScene::GetMinCartesianLimits();

	ECSManager::GetInstance().ForEach<Assets::Components::Transform, Assets::Components::ParticleEmitter>(
		[&](const Assets::Components::Transform &transform, Assets::Components::ParticleEmitter &particleEmitter)
		{
			std::uniform_int_distribution<int> randomDistribution(
				-particleEmitter.MaxDeviation, particleEmitter.MaxDeviation);

			for (auto &particle: particleEmitter.Particles)
			{
				//Simulation
				//Set particle's initial position according to the initial velocity.
				//The positions are relative to the particle emitter's world position
				particle.CurrentPosition = transform.WorldPosition + particleEmitter.StartingOffset +
					glm::vec2(randomDistribution(m_randomOffsetGenerator),
					randomDistribution(m_randomOffsetGenerator));

				//Rendering
				RenderParticle(particleEmitter, particle);
			}
		});
}

void Core::ECS::Systems::ParticleSystem::UpdateSystem(const float deltaTime)
{
	glm::vec2 particleVelocity = glm::vec2(0.0f);

	ECSManager::GetInstance().ForEach<Assets::Components::Transform, Assets::Components::ParticleEmitter>(
		[&, this](Assets::Components::Transform &transform, Assets::Components::ParticleEmitter &particleEmitter)
		{
			std::uniform_int_distribution<int> randomDistribution(
				-particleEmitter.MaxDeviation, particleEmitter.MaxDeviation);

			particleVelocity = particleEmitter.Velocity * -transform.Up;

			for (auto &particle: particleEmitter.Particles)
			{
				//Simulation
				particle.CurrentPosition += particleVelocity * deltaTime;

				if (particle.CurrentLifeTime < 0.0f)
				{
					//Reset particle position next to particle emitter
					particle.CurrentPosition = transform.WorldPosition + particleEmitter.StartingOffset +
					glm::vec2(randomDistribution(m_randomOffsetGenerator),
					randomDistribution(m_randomOffsetGenerator));

					particle.CurrentLifeTime = particleEmitter.ParticleLifetime;
				}

				particle.CurrentLifeTime -= deltaTime;

				//Rendering
				this->RenderParticle(particleEmitter, particle);
			}
		});
}
